The Ender 3 spool holder may seem like a small and simple accessory, but for anyone who regularly uses the popular Creality Ender 3 3D printer, it plays a big role in ensuring smooth, consistent, and reliable printing. A poorly designed or unstable filament holder can lead to printing issues such as tangling, uneven filament feed, or even print failure. Understanding how the Ender 3 spool holder works, how it can be upgraded, and what types of alternatives exist can greatly enhance your 3D printing experience. This topic explores everything you need to know about the Ender 3 spool holder from its function and setup to the best modifications and practical tips for users.
Understanding the Function of a Spool Holder
The spool holder on a 3D printer like the Ender 3 serves a straightforward purpose to hold the filament spool in place while it feeds into the extruder. Despite its simplicity, the spool holder has a major impact on print quality. A good spool holder ensures that filament unwinds smoothly and evenly, preventing friction, snags, or tension that could affect extrusion.
On the original Creality Ender 3, the spool holder is mounted on top of the printer’s frame. This vertical positioning allows the filament to feed directly into the extruder, minimizing the need for sharp bends. However, it can also make the printer a bit top-heavy and sometimes inconvenient for filament swaps. As a result, many users choose to upgrade or modify their spool holders for improved functionality.
Types of Ender 3 Spool Holders
There are several types of spool holders compatible with the Ender 3, ranging from the stock version included by Creality to a variety of aftermarket and DIY options. Each design has its own advantages depending on your printing setup and personal preferences.
1. Stock Ender 3 Spool Holder
The default spool holder that comes with the Ender 3 is a simple, plastic arm that attaches to the top bar of the printer’s frame. It’s lightweight and easy to assemble, making it suitable for beginners. However, because it sits high above the printer, some users experience slight wobbling or uneven filament feed when using heavier spools. Despite this, the stock holder remains a solid starting point for those new to 3D printing.
2. Side-Mounted Spool Holder
Many users prefer relocating the spool holder to the side of the Ender 3. A side-mounted spool holder lowers the printer’s center of gravity, making it more stable. This setup also makes it easier to change spools and keep the filament path shorter and smoother. Side-mounted holders can be purchased as kits or 3D printed using models available online, allowing for plenty of customization.
3. Bearing-Based Spool Holder

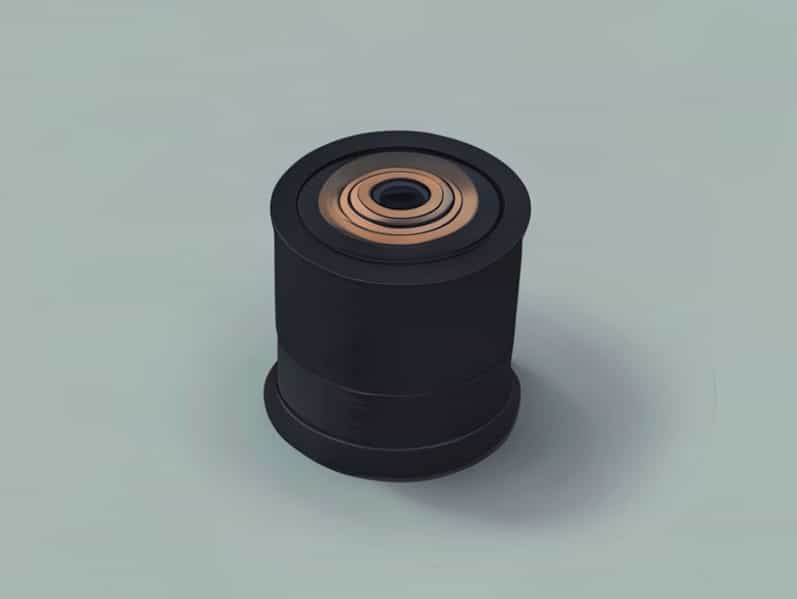

One of the most popular upgrades is the bearing-based spool holder. Instead of letting the spool rotate on a fixed rod, this design uses ball bearings to reduce friction. The result is a much smoother and quieter filament feed. These holders are often 3D printed by users themselves and use inexpensive skate bearings, making them both practical and budget-friendly. They are ideal for anyone who experiences inconsistent filament flow with the standard setup.
4. Wall-Mounted Spool Holder
For those with limited space or a desire for better cable management, a wall-mounted spool holder is another great option. By mounting the spool on a nearby wall or shelf, users can free up space on the printer and maintain a neat workspace. A PTFE guide tube is usually used to direct the filament from the wall-mounted spool to the extruder, ensuring smooth feeding even from a distance.
5. Dual or Multi-Spool Holder
Some advanced users prefer dual or multi-spool holders that can hold two or more filaments at once. This is especially useful for people who frequently switch between colors or materials. A dual holder allows for quick transitions without having to constantly remove and reload spools. It’s also useful for printers modified with multi-material extruders.
Improving Performance with a Custom Spool Holder
Upgrading the Ender 3 spool holder is one of the simplest ways to improve print consistency. A well-designed holder ensures steady filament tension and reduces drag. Many 3D printing enthusiasts design their own custom spool holders using CAD software or download free designs from online communities. These custom holders often include practical improvements such as adjustable width, smoother rotation, and better positioning.
Here are a few tips to consider when upgrading or creating your own
- Ensure the holder can accommodate different spool sizes, as filament spools vary between manufacturers.
- Add bearings to minimize friction during spool rotation.
- Keep the filament path as straight and short as possible to prevent unnecessary bending.
- Use sturdy materials such as PETG or PLA+ for 3D printed holders to ensure long-lasting strength.
- Consider portability detachable or modular holders make it easy to change spools quickly.
Common Issues and How to Fix Them
Even a small issue with the spool holder can lead to printing problems. Here are some of the most common challenges users face and how to address them
Filament Tangling
Tangling can occur if the filament does not unwind evenly. To fix this, ensure the spool spins freely without resistance. If necessary, loosen the mounting rod slightly or use bearings to help the spool rotate smoothly. Always store filament properly and check that it is not crossed over itself on the spool.
Unsteady Feeding
If the filament jerks or pulls during printing, it may indicate that the spool holder is too tight or not aligned properly with the extruder. Adjust the holder’s angle so that the filament feeds directly into the extruder entrance. Adding a guide tube can also help maintain a consistent path.
Printer Frame Wobble
Top-mounted holders can sometimes cause frame wobble, especially with heavier spools. If you experience this, consider moving the holder to a side or wall-mounted setup. This reduces the strain on the printer’s top frame and creates a more balanced structure.
Material Choices for Spool Holders
When creating or purchasing a spool holder, material selection plays a role in its durability and stability. Plastic holders made from PLA or ABS are lightweight and easy to print, but they may deform slightly under constant weight or heat exposure. PETG is a good middle ground, offering flexibility and heat resistance. For more permanent installations, metal or wood holders can provide extra rigidity and stability, especially for large filament spools used in long print sessions.
Practical Benefits of a Well-Designed Spool Holder
Having the right Ender 3 spool holder setup offers several advantages that go beyond convenience. A stable filament feed leads to better extrusion and print consistency, reducing the risk of under-extrusion or clogs. Additionally, an ergonomic holder placement simplifies filament changes, saving time during projects. A smoother feed also reduces wear on the extruder gears and motor, extending their lifespan over time.
Another benefit is organization. Many spool holder designs include extra features like filament clips, desiccant compartments, or label holders. These small touches make it easier to manage multiple filaments and maintain an efficient printing workspace.
The Ender 3 spool holder might appear like a minor accessory, but it has a major impact on print quality, ease of use, and the overall 3D printing experience. Whether you stick with the stock version or upgrade to a custom design, ensuring a smooth and reliable filament feed is key to producing consistent and professional-looking prints. By experimenting with different holder types top-mounted, side-mounted, bearing-based, or wall-mounted you can find the setup that best fits your workflow. In the end, investing time in improving your Ender 3 spool holder setup can save you from countless printing issues and elevate the reliability of every print you create.
