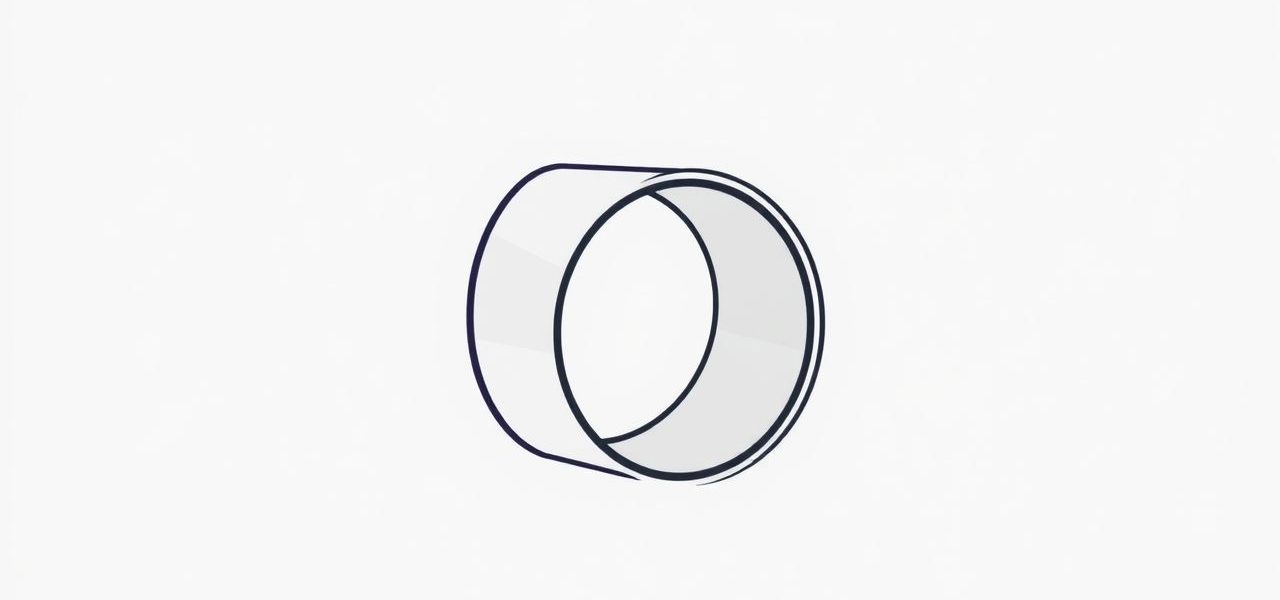

A hollow cylinder is a three-dimensional shape that resembles a tube, with two circular bases connected by a curved surface, but with an empty space in the middle. Unlike a solid cylinder, it has both an outer radius and an inner radius, making its structure ideal for pipes, tubes, and mechanical parts where weight reduction or fluid flow is important. Understanding how to calculate the volume of a hollow cylinder is useful in engineering, manufacturing, and even daily life situations. The process involves applying basic geometry while taking into account the difference between the outer and inner circular areas.
Definition of a Hollow Cylinder
A hollow cylinder, sometimes called a cylindrical shell, is a cylinder with a cavity inside. This means it has two concentric circular bases an outer base and an inner base. The volume represents the space inside the material of the cylinder, not the empty middle part.
Key Parameters
- Outer Radius (R)The distance from the center to the outer circular boundary.
- Inner Radius (r)The distance from the center to the inner circular boundary.
- Height (h)The distance between the two circular bases.
Formula for the Volume of a Hollow Cylinder
The formula to calculate the volume of a hollow cylinder is based on subtracting the volume of the inner cylinder from the volume of the outer cylinder
Volume = Ïh(R² â r²)
Why This Formula Works
The volume of a solid cylinder is given byÏ Ã radius² à height. In a hollow cylinder, the material is only between the outer and inner surfaces, so we take the volume of the larger cylinder and subtract the volume of the smaller one. The result gives the space occupied by the material itself.
Step-by-Step Calculation Example
Suppose a hollow cylinder has an outer radius of 10 cm, an inner radius of 7 cm, and a height of 15 cm. The steps are
- Square the outer radius 10² = 100
- Square the inner radius 7² = 49
- Subtract 100 â 49 = 51
- Multiply by Ï 51 Ã Ï â 160.22
- Multiply by height 160.22 à 15 â 2403.3 cm³
The volume of the hollow cylinder is approximately 2403.3 cubic centimeters.
Applications of Hollow Cylinder Volume
The concept is widely used in various industries and scientific fields. Here are some common applications
- EngineeringCalculating the material needed for pipes and structural tubes.
- ManufacturingDesigning mechanical parts such as bushings and sleeves.
- PlumbingEstimating water or fluid flow through pipes.
- ConstructionDetermining the amount of material in cylindrical columns with hollow centers.
Relationship to Surface Area
Although volume measures the space occupied by the material, surface area focuses on the outer and inner surfaces. In certain cases, engineers calculate both to optimize strength and weight. A hollow cylinder’s design allows for less material use while maintaining structural stability, which is essential in lightweight construction.
Practical Considerations
Units of Measurement
When calculating the volume, all measurements for radii and height should be in the same units. The resulting volume will be in cubic units, such as cubic centimeters (cm³) or cubic meters (m³).
Accuracy in Measurement
Even small measurement errors can significantly affect the calculated volume, especially when dealing with large-scale structures. Precision tools are recommended for professional applications.
Comparison with Solid Cylinder Volume
A solid cylinder’s volume is larger for the same outer radius and height because it includes the inner space. A hollow cylinder removes that inner portion, making it lighter and using less material. This difference is critical in applications where weight matters, such as aerospace or automotive design.
Alternative Approach Using Cross-Sectional Area
Another way to understand the formula is to think about the cross-sectional area of the hollow cylinder. The cross-section is an annulus (ring shape) with area
Area = Ï(R² â r²)
Then multiply that area by the height to get the volume. This perspective emphasizes that the volume is essentially the area of the ring extended along the height of the cylinder.
Real-Life Example
Consider a metal tube used in a bicycle frame with an outer radius of 2.5 cm, an inner radius of 2.2 cm, and a length (height) of 50 cm
- Outer area 2.5² = 6.25
- Inner area 2.2² = 4.84
- Difference 6.25 â 4.84 = 1.41
- Multiply by Ï 1.41 Ã Ï â 4.43
- Multiply by height 4.43 à 50 â 221.5 cm³
The volume of material in the tube is approximately 221.5 cubic centimeters.
Advantages of Hollow Cylinders
- They reduce material costs without significantly compromising strength.
- They are lighter, making them ideal for transportation and aerospace industries.
- They can allow fluids, wires, or gases to pass through their centers.
Limitations
- They may be less structurally strong than solid cylinders of the same outer diameter.
- Manufacturing processes can be more complex.
- Corrosion or wear can occur on both inner and outer surfaces, requiring maintenance.
Calculating the volume of a hollow cylinder is a straightforward process once you understand the concept of subtracting the inner volume from the outer volume. The formulaÏh(R² â r²)is simple yet powerful, allowing applications in engineering, construction, manufacturing, and everyday problem-solving. By mastering this calculation, one can accurately determine material quantities, optimize designs for strength and weight, and make informed decisions in technical and practical contexts. Whether designing a bridge support, building a bicycle frame, or estimating pipe material, understanding the volume of a hollow cylinder is a valuable mathematical skill.
