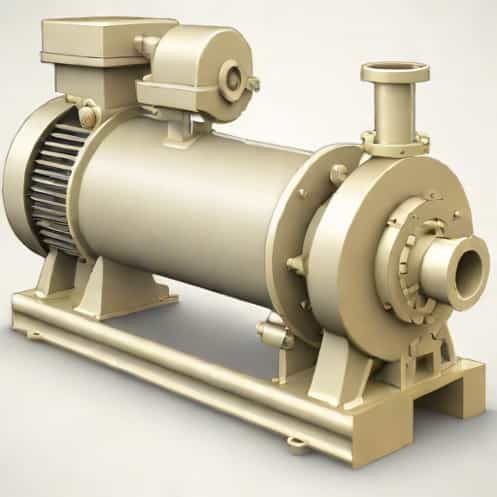

Horizontal multistage centrifugal pumps are widely used in industries and municipal applications where high-pressure fluid delivery is required. These pumps are designed to handle a variety of liquids, offering efficiency, reliability, and durability. Their horizontal configuration allows for easy maintenance and installation, making them suitable for applications such as water supply, boiler feed, irrigation, and industrial processes. With multiple stages, these pumps can generate high pressure without compromising flow rate, providing a cost-effective solution for demanding fluid transport needs.
Understanding Horizontal Multistage Centrifugal Pumps
A horizontal multistage centrifugal pump consists of multiple impellers mounted on a single shaft, arranged in a horizontal line. Each stage increases the pressure of the liquid, allowing the pump to achieve higher discharge pressures than a single-stage pump. The centrifugal force generated by the rotating impellers moves the fluid outward, converting velocity energy into pressure energy. This mechanism ensures smooth and continuous flow, making these pumps ideal for applications requiring steady pressure and high efficiency.
Components of Horizontal Multistage Centrifugal Pumps
The main components of a horizontal multistage centrifugal pump include
- CasingThe outer shell that houses the impellers and directs the flow of liquid through the pump.
- ImpellersRotating blades that impart kinetic energy to the fluid, increasing its pressure and velocity.
- ShaftA horizontal shaft connecting the impellers, transmitting mechanical energy from the motor.
- BearingsSupport the shaft and reduce friction, ensuring smooth rotation.
- Mechanical SealsPrevent leakage of fluid along the shaft, maintaining efficiency and safety.
- StagesMultiple impellers in series to achieve high-pressure output, especially in applications like boiler feed or high-rise water supply.
Advantages of Horizontal Multistage Centrifugal Pumps
These pumps offer several advantages that make them a preferred choice in various industries
- High Pressure OutputMultiple stages allow the pump to generate significant pressure, suitable for long pipelines and high-rise water systems.
- EfficiencyDesigned to provide high efficiency across different flow rates, reducing energy consumption and operational costs.
- Ease of MaintenanceThe horizontal configuration provides easy access to components, allowing for quick maintenance and repair.
- DurabilityMade from robust materials like stainless steel or cast iron, these pumps can handle demanding conditions and corrosive fluids.
- VersatilitySuitable for water treatment plants, industrial cooling systems, boiler feed applications, and more.
Applications of Horizontal Multistage Centrifugal Pumps
Horizontal multistage centrifugal pumps are versatile and widely used in multiple industries due to their efficiency and high-pressure capabilities
- Water Supply SystemsUsed in municipal water distribution and high-rise buildings to maintain consistent pressure and flow.
- Industrial ProcessesEssential in chemical, petrochemical, and manufacturing plants for pumping water, chemicals, or other fluids.
- Boiler Feed ApplicationsProvide high-pressure water supply to boilers, ensuring safe and efficient operation.
- Irrigation SystemsSuitable for agricultural irrigation, providing uniform water distribution across large areas.
- Fire Fighting SystemsUsed in high-rise buildings or industrial facilities to deliver high-pressure water for fire suppression.
Working Principle of Horizontal Multistage Centrifugal Pumps
The working principle of a horizontal multistage centrifugal pump is based on centrifugal force. When the motor rotates the shaft, the impellers spin, imparting kinetic energy to the fluid. As the fluid moves outward through the impeller, its velocity increases. The pump casing converts this velocity energy into pressure energy, producing a steady flow. Each additional stage further increases the pressure, allowing the pump to achieve high-pressure output suitable for applications like water transfer over long distances or high-rise supply.
Performance Characteristics
Horizontal multistage centrifugal pumps are known for their consistent performance. Key characteristics include
- High EfficiencyEfficient conversion of mechanical energy to fluid energy reduces energy consumption.
- Stable FlowMaintains consistent flow rate even at varying pressures.
- Adjustable PressureCan be tailored to meet specific pressure requirements by adding or removing stages.
- Quiet OperationThe horizontal design and balanced impellers reduce vibration and noise.
Installation and Maintenance
Proper installation and regular maintenance are critical for the optimal performance of horizontal multistage centrifugal pumps. They should be mounted on a stable base to minimize vibrations. Alignment of the pump and motor shafts is essential to prevent mechanical wear and tear. Routine maintenance includes checking bearings, mechanical seals, impellers, and lubrication systems. Periodic inspections help detect wear or corrosion early, ensuring longevity and reliability.
Common Maintenance Practices
- Inspect and lubricate bearings regularly to prevent overheating and wear.
- Check mechanical seals for leakage and replace them when necessary.
- Clean impellers and casings to remove debris or scaling that may reduce efficiency.
- Monitor pump performance and vibration levels to detect potential issues early.
- Ensure proper alignment of the pump and motor to avoid excessive wear.
Materials and Construction
Horizontal multistage centrifugal pumps are constructed using materials that provide durability and resistance to corrosion or abrasion. Common materials include
- Stainless SteelIdeal for corrosive liquids and hygienic applications.
- Cast IronSuitable for general water supply and industrial use.
- BronzeUsed in marine applications due to its resistance to saltwater corrosion.
- High-Quality AlloysFor chemical industries where fluid properties are highly aggressive.
Horizontal multistage centrifugal pumps are reliable, efficient, and versatile solutions for high-pressure fluid applications across industries. Their horizontal configuration, multiple stages, and durable construction make them suitable for water supply, industrial processes, boiler feed, irrigation, and firefighting systems. Understanding their components, working principle, and maintenance requirements ensures optimal performance and long service life. With their combination of efficiency, high pressure output, and ease of maintenance, horizontal multistage centrifugal pumps remain a vital component in modern fluid handling systems.
